Parts Reference Chart
Use the part numbers below when placing your order. Contact us with any questions about fitment or thickness options.
Belts
| # | Part Number | Description | Notes |
|---|
| 1 |
|
Belt 1 220mm |
01=10mm, 13=13mm |
| 2 |
|
Belt 2 & 3 220mm |
01=10mm, 13=13mm |
| 4 |
|
Belt 4 150mm |
01=10mm, 13=13mm |
| 5 |
|
Belt 5 150mm |
01=10mm, 13=13mm |
Cleats
| # | Part Number | Description | Notes |
|---|
| 1 |
|
Right Outer Cleat |
|
| 2 |
|
Right Inner Cleat |
|
| 3 |
|
Left Outer Cleat |
|
| 4 |
|
Left Inner Cleat |
|
Tire Guides
| # | Part Number | Description | Notes |
|---|
| 5 |
|
Tire Guide |
|
Backing Plates
| # | Part Number | Description | Notes |
|---|
| 6 |
|
3 Hole Backing Plate |
|
| 7 |
|
2 Hole Backing Plate |
|
Lacings
| # | Part Number | Description | Notes |
|---|
| 10 |
|
3 Hole 10mm Lacing |
|
| 11 |
|
2 Hole 10mm Lacing |
|
| 12 |
|
3 Hole 13mm Lacing |
|
| 13 |
|
2 Hole 13mm Lacing |
|
Hardware / Bolts
| # | Part Number | Description | Notes |
|---|
| 8 |
|
Cleat Bolt 12mm x 60mm pre-coated |
|
| 9 |
|
Tire Guide Bolt |
|

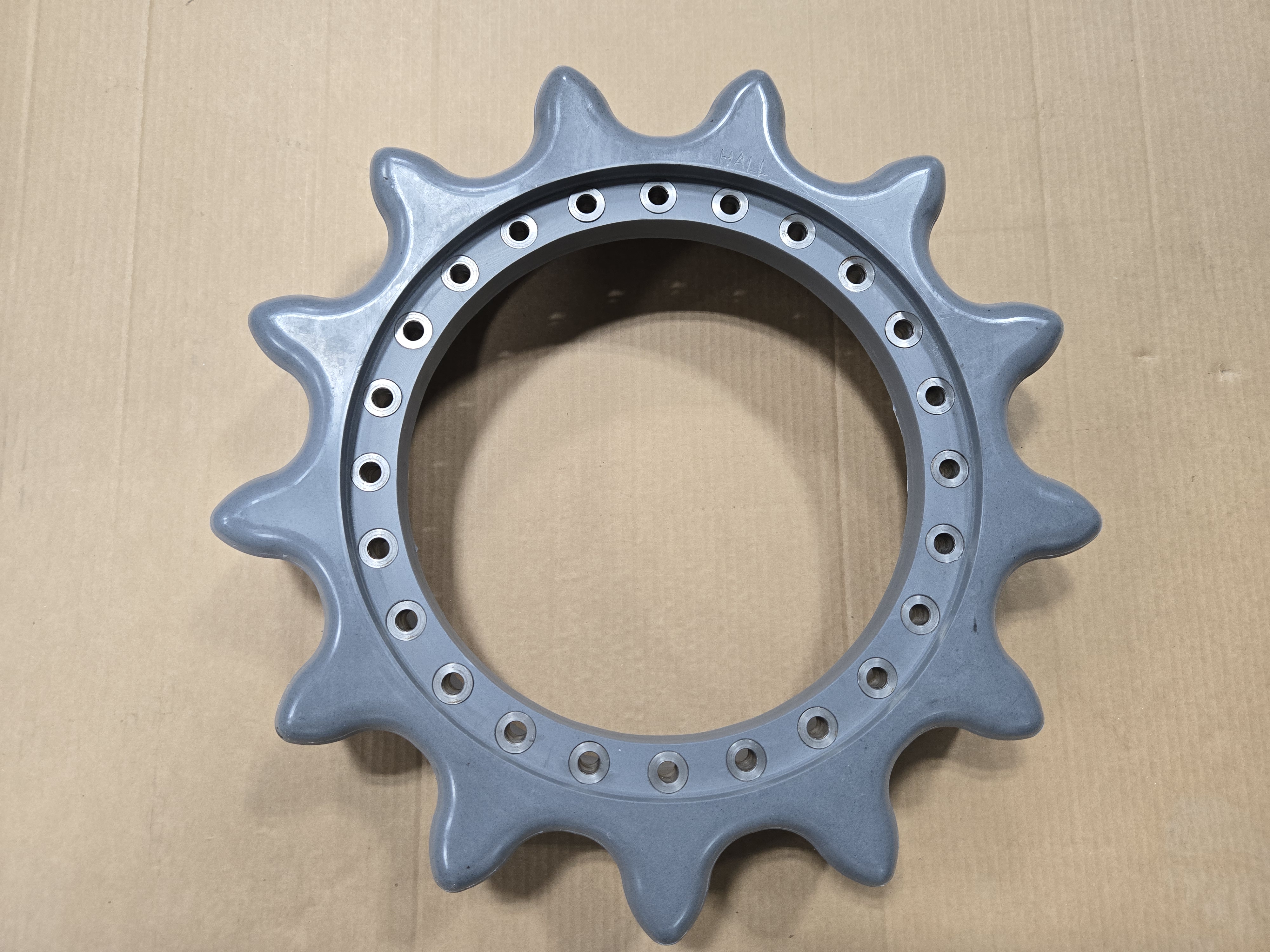

Sprockets
| # | Part Number | Description | Notes |
|---|
| 14 |
|
Sprocket |
|
