Parts Reference Chart
Use the part numbers below when placing your order. Contact us with any questions about fitment or thickness options.

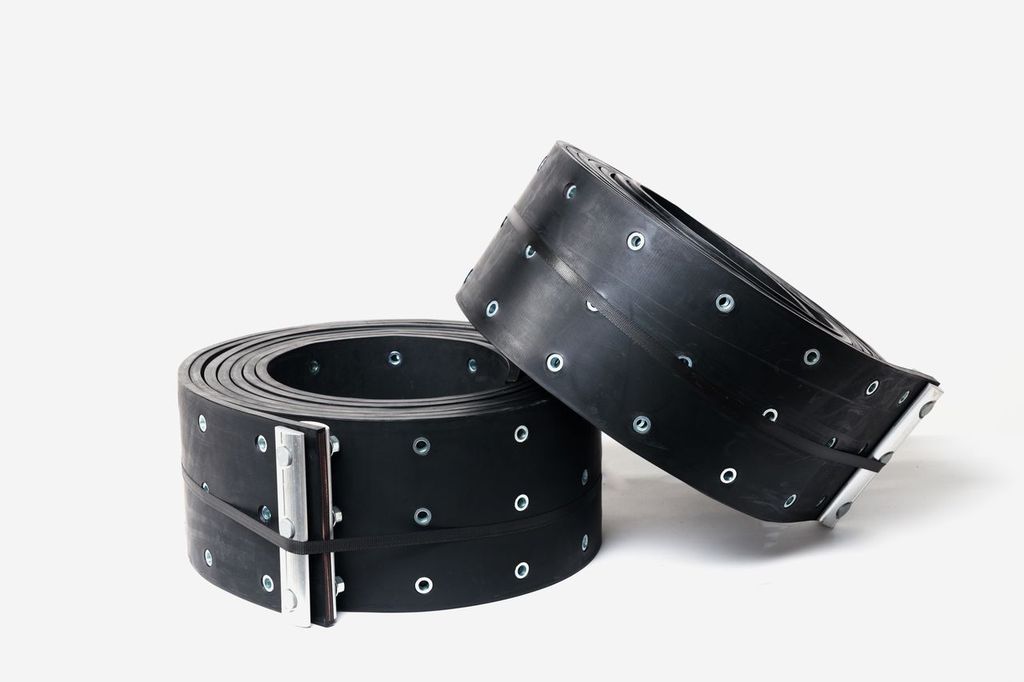

Belts
| # | Part Number | Description | Notes |
|---|
| 1 |
|
Belt 1 & 6 120mm |
|
| 2 |
|
Belt 2, 3 & 5 150mm |
|
| 4 |
|
Belt 4 220mm |
|

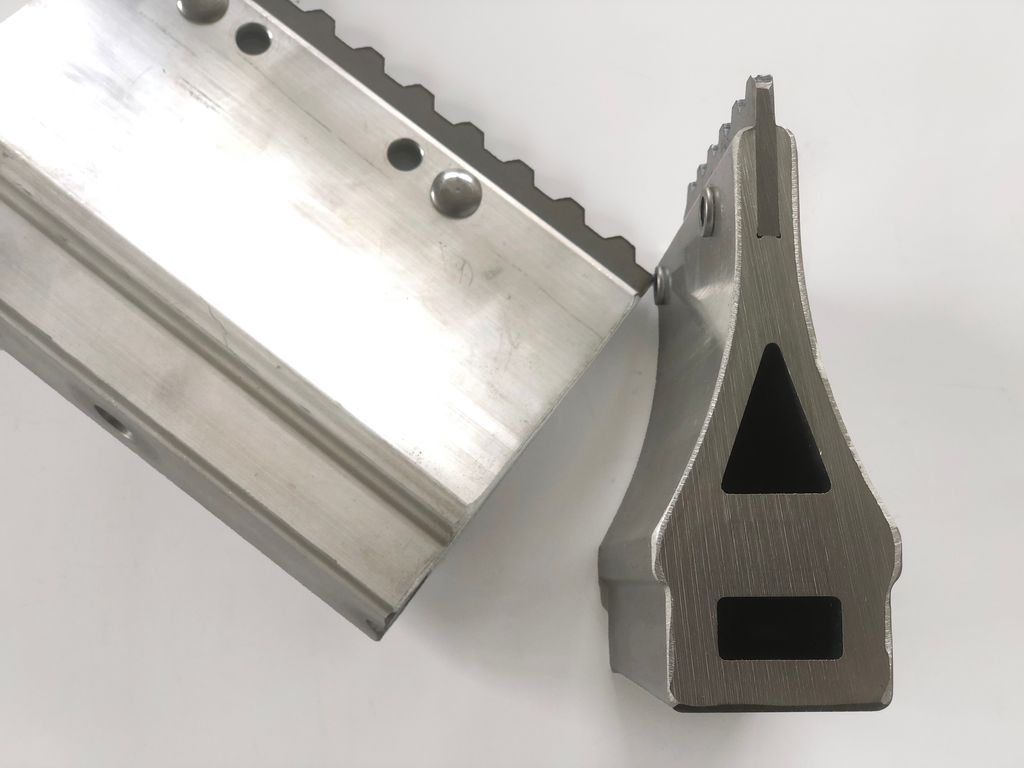

Cleats
| # | Part Number | Description | Notes |
|---|
| 5 |
|
Inside Cleat (Old Style) 1360mm |
|
| 6 |
|
Outside Cleat (Old Style) 1425mm |
|
Tire Guides
| # | Part Number | Description | Notes |
|---|
| 7 |
|
Tire Guide |
|
Backing Plates
| # | Part Number | Description | Notes |
|---|
| 8 |
|
120mm Backing Plate |
|
| 9 |
|
220mm Backing Plate |
|
| 10 |
|
150mm Backing Plate |
|
Lacings
| # | Part Number | Description | Notes |
|---|
| 11 |
|
120mm Lacing |
|
| 12 |
|
220mm Lacing |
|
Hardware / Bolts
| # | Part Number | Description | Notes |
|---|
| 13 |
|
Track Bolts |
|
| 14 |
|
Guide Bolts |
|
Sprockets
| # | Part Number | Description | Notes |
|---|
| 15 |
|
Sprocket |
|
