Parts Reference Chart
Use the part numbers below when placing your order. Contact us with any questions about fitment or thickness options.

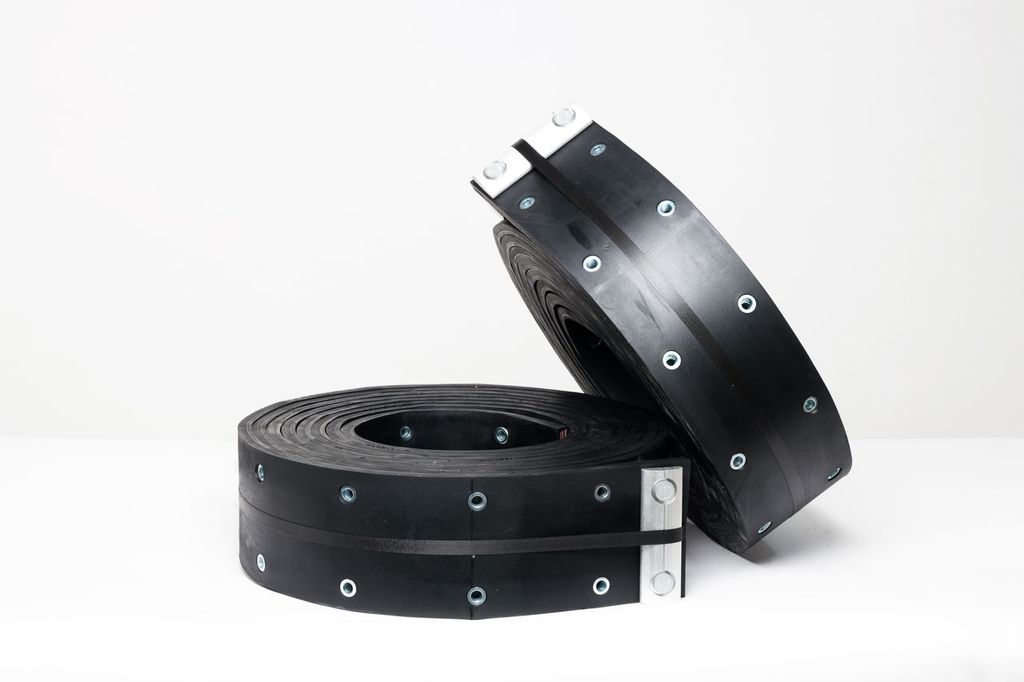

Belts
| # | Part Number | Description | Notes |
|---|
| 1 |
|
Belt 1 & 6 120mm |
|
| 2 |
|
Belt 2, 3, 4 & 5 150mm |
|
| 7 |
|
Belt 7 105mm |
|

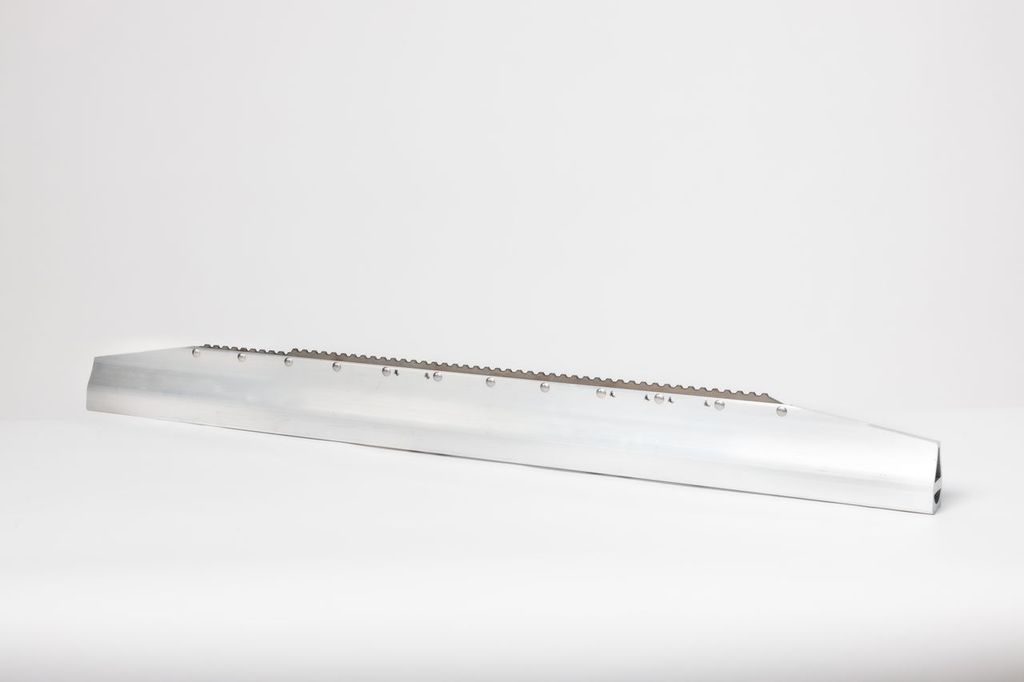

Cleats
| # | Part Number | Description | Notes |
|---|
| 3 |
|
Inside Cleat 1275mm (12mm Guide Bolt) |
|
| 4 |
|
Outside Cleat 1430mm (12mm Guide Bolt) |
|
| 5 |
|
Inside Cleat 1275mm (14mm Guide Bolt) |
|
| 6 |
|
Outside Cleat 1430mm (14mm Guide Bolt) |
|
Tire Guides
| # | Part Number | Description | Notes |
|---|
| 8 |
|
Tire Guide (fits 12mm & 14mm, drill out for 14mm) |
|

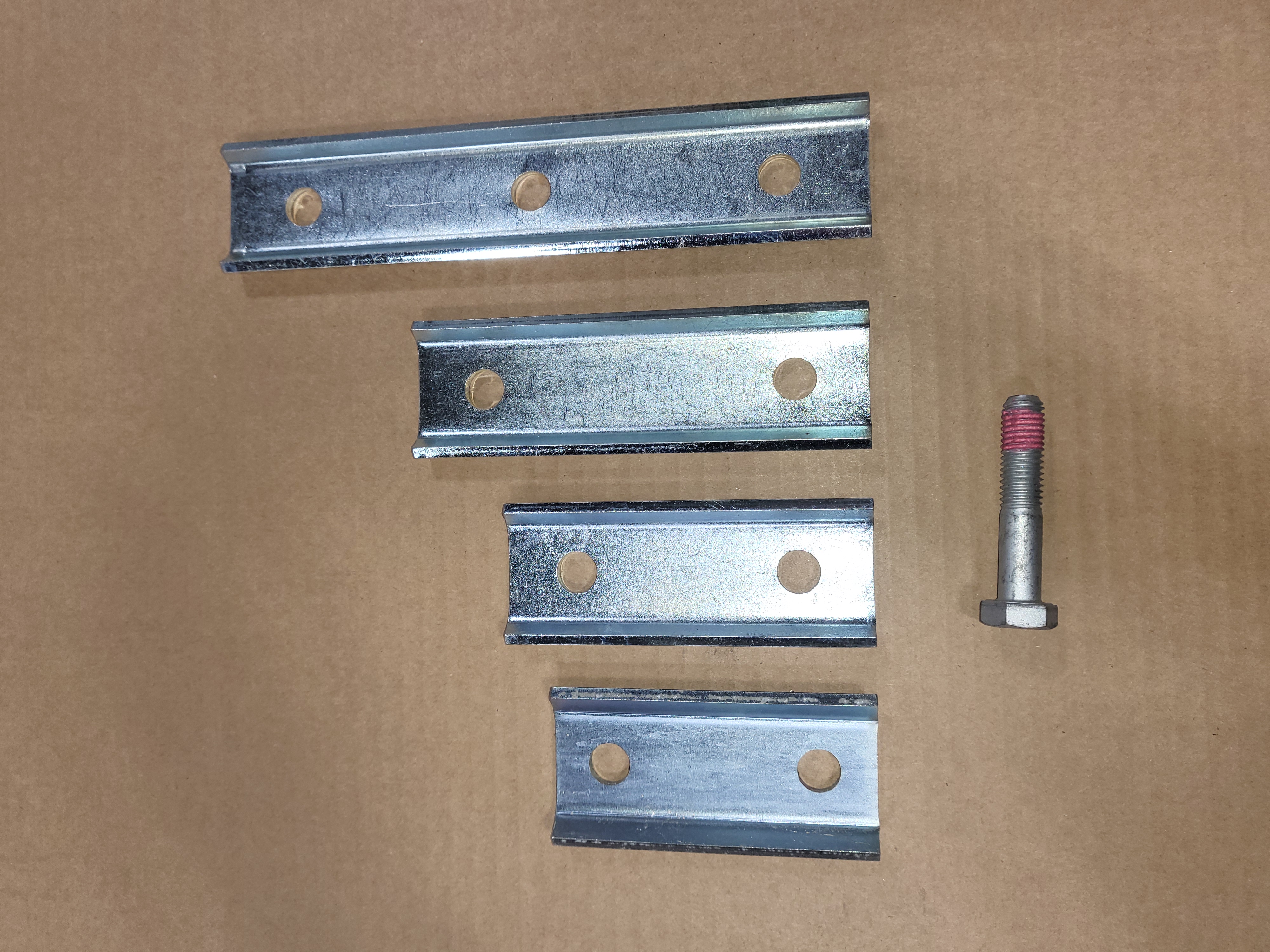

Backing Plates
| # | Part Number | Description | Notes |
|---|
| 12 |
|
120mm 2 Hole Backing Plate |
|
| 13 |
|
150mm 2 Hole Backing Plate |
|
| 14 |
|
105mm 2 Hole Backing Plate |
|

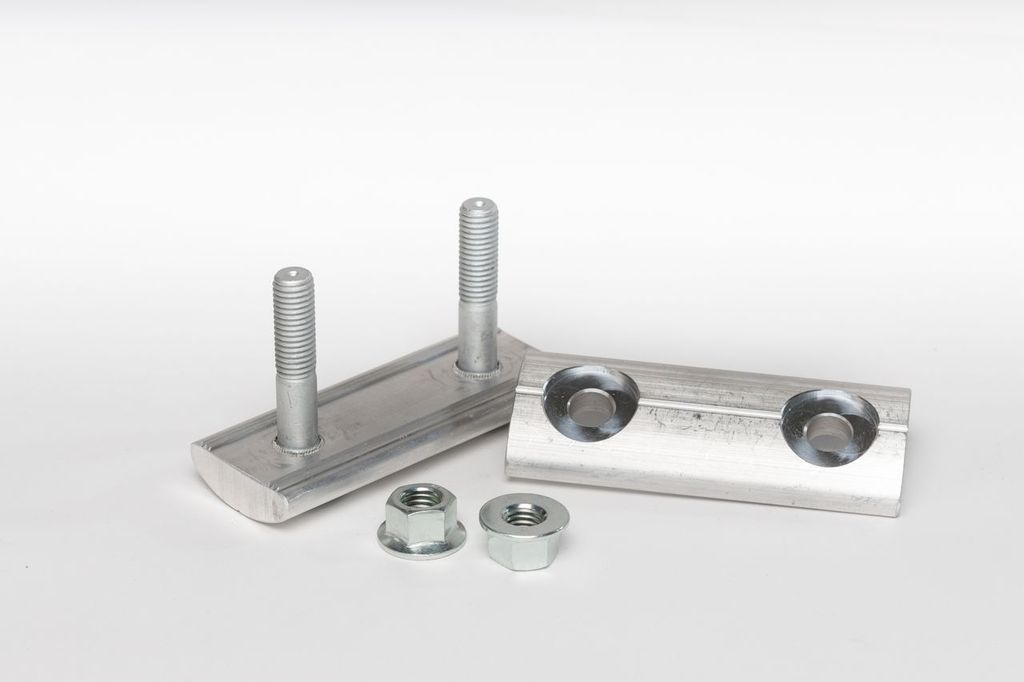

Lacings
| # | Part Number | Description | Notes |
|---|
| 15 |
|
120mm 2 Hole Lacing |
|
| 16 |
|
150mm 2 Hole Lacing |
|
| 17 |
|
105mm 2 Hole Lacing |
|

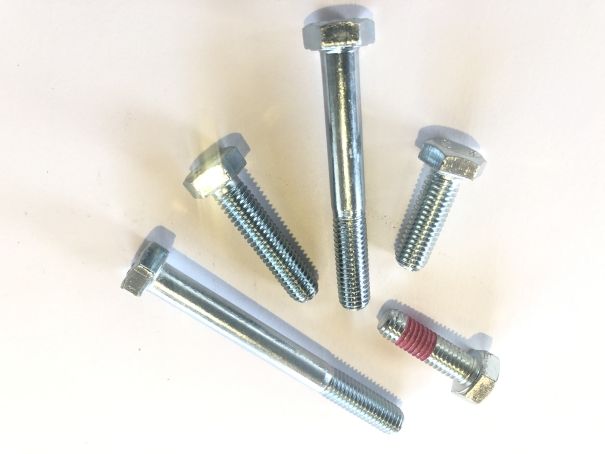

Hardware / Bolts
| # | Part Number | Description | Notes |
|---|
| 9 |
|
12mm Guide Bolt |
|
| 10 |
|
14mm Guide Bolt |
|
| 11 |
|
Cleat Bolt |
|
